Overhaul Part 1: Carpentry, Love Notes, and the Custom Galley

When I first purchased Gecko in May of 2017, she was set up as a weekend sailer. Even though she’s only twenty-seven feet, I was able to comfortably sleep seven people. The galley was perfect for storing booze, snacks, and plastic cups. The storage was minimal, and the cushions were plaid horsehair; in short, I had purchased a floating hunting lodge. Regardless, I had a great summer cruising around Maine and starting my fathoms-long list of changes and improvements.
0EA1C620-FFB2-45D5-8D4F-6100B0E412B5

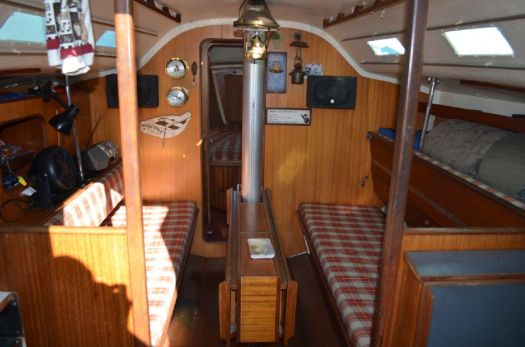

Gecko the way she looked when I purchased her as “Seamark”
I hauled out in October of 2017 and started on my first project: rip out and rebuild the galley, convert the pilot berth into lockers, change the drawers into lockers with doors, and redo the head storage area. I figured it was smart to start with something unambitious and easily manageable.
45AED159-7950-4A4E-861A-3A1A905DF789

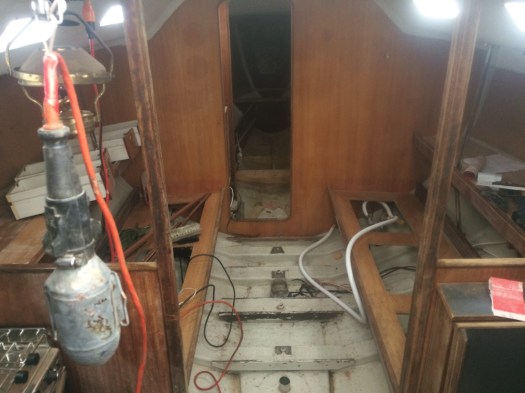

The most torn apart Gecko ever was. At this junction there was no plumbing, electrical, and all the main cabin lockers were torn out
I started by replicating the port side lockers into the space that was formerly the pilot berth. Once I had completed this, I took out the sink in the head, redid the counter top, and pulled the locker face forward by about eight inches to create more storage. Although I liked the idea of saving time by washing my hands while I was using the head, I felt like I could handle the twelve-foot trek to the galley sink.
Gecko’s original galley when I purchased her
I ripped out the entire galley and purchased a two-burner gimballed stove with an oven to install in lieu of the Princess two-burner stovetop. I started designing my new galley by putting all my kitchen supplies into the empty space and building cardboard partitions around my kitchen-ware. I find it much easier to build into the three dimensional space, rather than trying to draw it out on a 2D piece of paper.
7CDB4BDA-BE0B-434E-B5A6-F5D24E0AD011

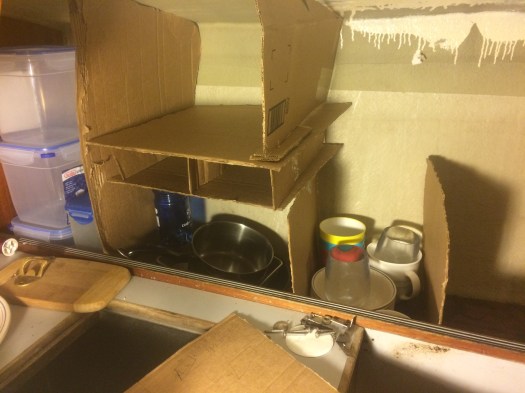

Early cardboard mock-up for my galley lockers area behind the stove
Once I was satisfied with cardboard palace, I created templates and started cutting out plywood and building my lockers. Therefore, my locker that holds pots and pans is the width of my widest pan, the plates fit perfectly into the plate area, and I can never buy any new kitchenware ever again or I’ll have to rip out all the wood and rebuild.
E7689B69-3636-4639-914D-7440285A2D86
The dry-fit galley lockers. And new stove!
I also put in a new sink, a fresh and a salt water pump, and installed a new counter-top.
8871C50D-9599-4819-BEEC-B9C65A3C4550
My completed galley
After I’d created all the shelves and bulkheads around the boat, I cut out locker faces and doors. Instead of using finger catches to hold the doors closed, I carved little tabs out of teak for each door. This is a locking system my dad came up with on his first boat, and it is an elegant and inexpensive solution for motivated fools with a chisel and spare day or two.
A98C578D-45B4-4DF3-B612-8E3C54853D08
Same view, different boat! (This was pre-launch, so minus the mast)
I replaced all the port lights with lexan that I cut and routered into shape. I’m not sure what brand of ’till-death-we-part adhesive was used to seal in the original port lights (probably 5200), but it took about half an hour with a hammer and chisel to get each one out. They came out in splintered pieces.
F206D44F-6300-42FC-BB94-60C55911E4D8
Replacing the port lights was a tedious job. Here I was celebrating my last day with giant holes all over my cabintop



Rebuilding the interior was the first project I started, and it was ongoing throughout my other renovations. After several months in, I went back over the very first locker I built, and was able to see how far my skills had come (not as impressive as it sounds since I was starting somewhere after macaroni necklace but before mud fort). Underneath the counter-tops, I wrote messages to myself like little hidden talismans in the heart of my boat.
